Review
We review the drawing, sketch, sample or dimensions and identify the information still required.
Naude Industries / CNC Plasma Cutting & Drawings
Cape Town cutting servicesCNC Plasma Cutting & Drawings
Bring us a production drawing, a rough sketch, a sample component or the dimensions of what you need. We help develop the profile, prepare it for cutting and carry the part through to fabrication when required.
Drawing supportSketch, sample or supplied file
CNC plasmaRepeatable plate profiles
Mild steelCutting up to 20 mm
Follow-on workFinishing and fabrication available
Drawing to finished component
You do not need to arrive with a perfect drawing.
The useful part of our CNC service begins before the torch starts cutting.
Naude Industries can help interpret the component, prepare a practical 2D cutting profile and confirm the important dimensions before production. This is especially useful for replacement parts, brackets, gussets, base plates, flanges, signs and custom fabricated components.
Client-supplied drawings
Sketch development
Sample-based profiles
Repeat production
Material nesting
Fabrication support
How the work moves
From requirement to repeatable part.
Each job is assessed according to the material, thickness, geometry, quantity and intended use of the component.
Prepare
The profile is drawn, cleaned and prepared for practical CNC plasma cutting and material nesting.
Cut
The part is cut, identified and checked against the confirmed requirements.
Complete
Parts can be supplied as cut profiles or carried into finishing, welding and fabrication.
Project 01 / Vessel identification
Vessel markings cut from plate

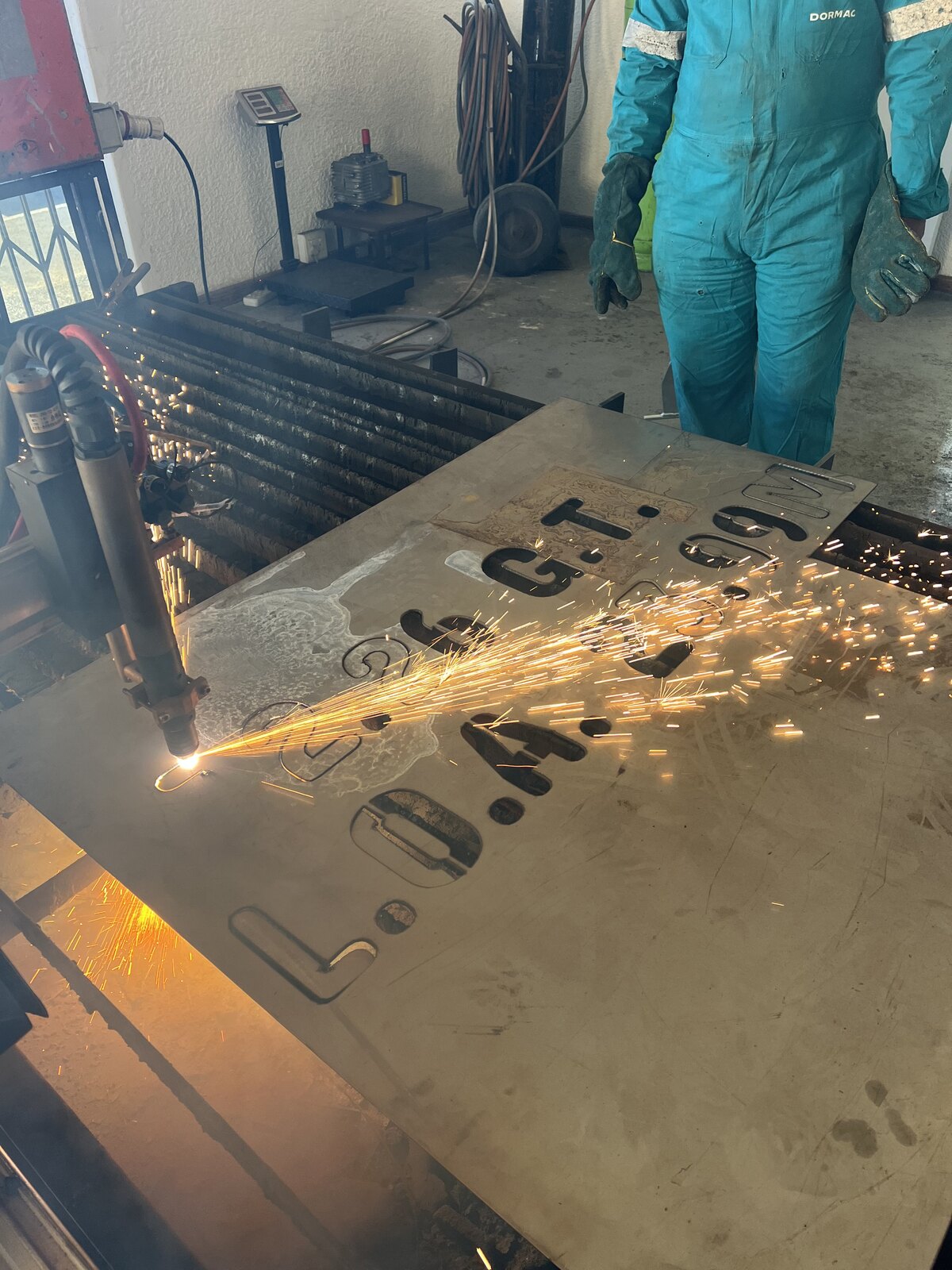

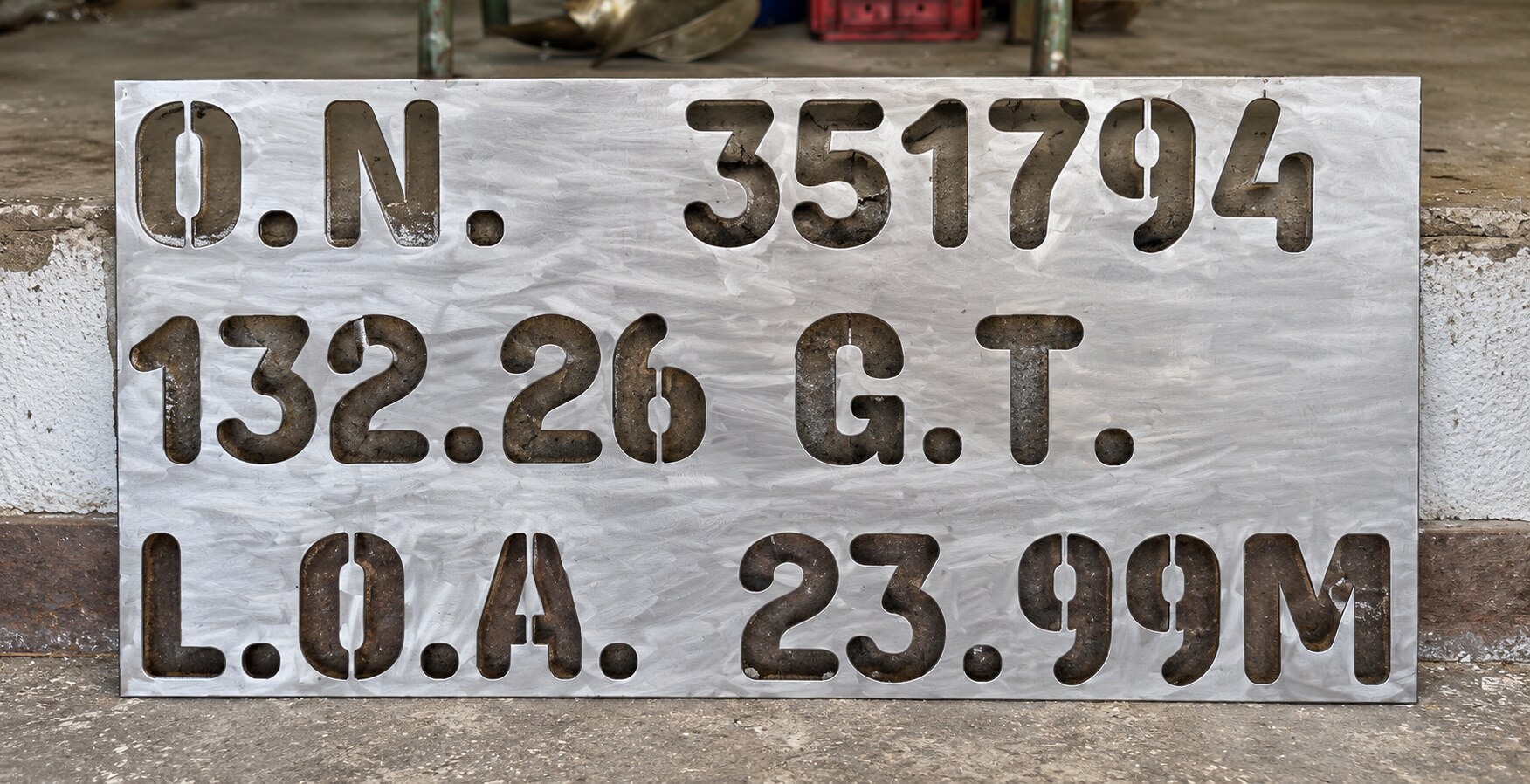

Individual identification characters were prepared and CNC cut as a complete vessel marking set, ready for installation.
Project 02 / Repeat production
Gate fittings cut in batches
A repeatable profile was prepared and nested for efficient batch cutting, producing matching components for fabrication.
Project 03 / Drawing to fabrication
Aluminium gangway step

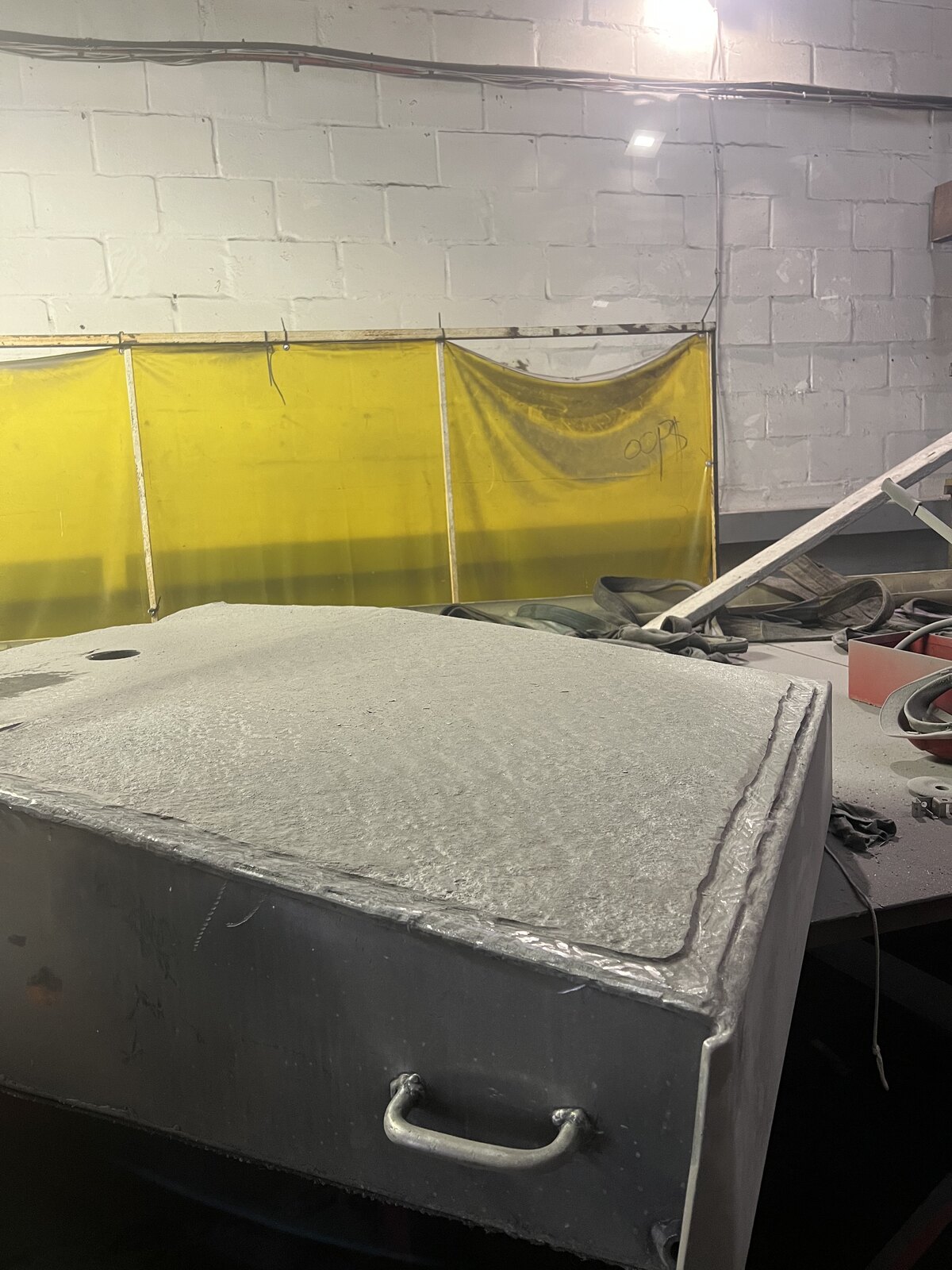

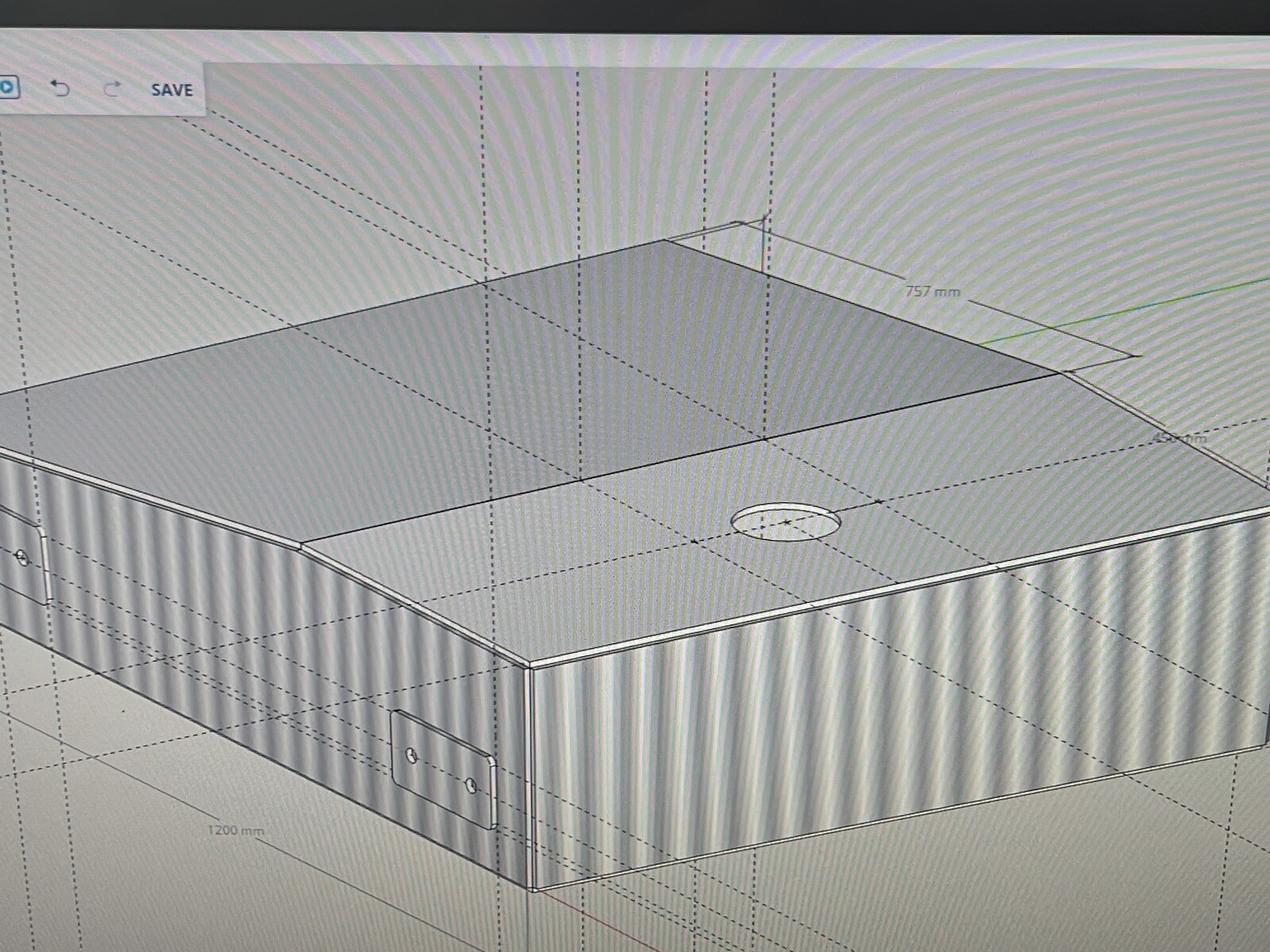

The complete box was drawn, divided into individual profiles, CNC cut and welded into a finished aluminium gangway step.
Practical capability
Cut for the job. Prepared for what comes next.
Our CNC plasma service supports one-off repair components as well as repeated parts for fabrication and production requirements.
Mild steel plateProfiles up to 20 mm thick
Stainless steelSuitable profiles and thicknesses confirmed per job
QuantitiesOne-off components and repeat batches
InputsDrawings, sketches, dimensions or samples
OutputsCut profiles or fabricated components
Service areaCape Town with Saldanha project support
Final suitability, edge finish and dimensional requirements are confirmed against the material and intended application before production.
Common questions
CNC plasma cutting enquiries.
Do I need to supply a finished CNC drawing?
No. We can review a sketch, sample, dimensions or an existing drawing and establish what is required to prepare a cutting profile.
What information helps you quote accurately?
Send the material type, thickness, quantities, key dimensions and intended use. A photograph, sketch or sample is also useful when a drawing is not available.
Can Naude Industries supply the material?
Material can be included subject to availability and the confirmed job requirements. Client-supplied material can also be considered by arrangement.
Can you fabricate the parts after cutting?
Yes. CNC cutting can be combined with bending, welding, machining support, finishing and assembly where the project requires it.
